Juniper High Availability Customer Site using AS-Prepend

Configuring Dual-CE BGP High Availability Site. This article provides Juniper Configuration Example that uses BGP AS-Prepend to identify primary and secondary paths.

Introduction

The goal of today’s exercise is to build a High Availability (HA) Site that would be dual-homed to different PE routers of the same upstream Internet provider. This is one of the common scenarios described in BGP for Enterprise Networks article.  As you might recall, dual-homing to the same ISP does not require your company to acquire Public BGP AS and Provider Independent Internet-Routable IP Space, while providing protection against single link and/or CE failure.

Physical Topology Diagram

In our example, we will build the topology with two CE devices that will run VRRP between them. CE-1 to PE-1 link will be designated as the primary path, CE-2 to PE-2 will be used in case of the primary link failure.

BGP HA Customer Site - Dual CE - Physical Topology
BGP HA Customer Site – Dual CE – Physical Topology

BGP Logical Diagram

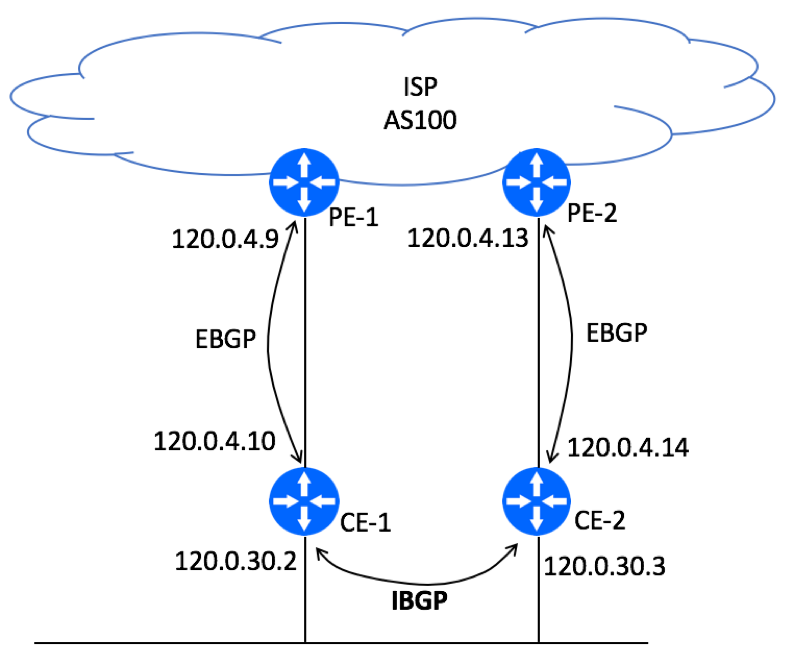

BGP Logical Topology for the dual-homing scenario is displayed below. EBGP sessions will be setup between CE and PE devices with IBGP session between two CEs.

BGP HA Customer Site - Dual CE - Logical Topology
BGP HA Customer Site – Dual CE – Logical Topology

As mentioned earlier, CE-1 to PE-1 link will be designated as the primary path. In order to avoid asymmetric traffic flow (packets leaving the network via one CE but returning via a different CE), we need to make sure that CE-1 will be the preferred router for both Ingress and Egress traffic.

In order to take care of the Egress traffic (customer site to ISP direction), CE-1 will be setup with a higher VRRP priority. We will also setup higher local preference (120) for the default route received via CE-1.

For Ingress traffic, we need to find a mechanism to tell the ISP that routes received from CE-2 should be inferior to those received from CE-1. This can be achieved by either advertising special communities that are understood and supported by your ISP, or using AS-Prepend on CE-2 – PE-2 path. We’ll use the latter AS-Prepend approach, as it is universally supported by the majority of ISPs.

BGP Configuration and Verification

EBGP Session between CE-1 and PE-1

  • Configure AS Number and Router ID
set routing-options autonomous-system 65001

set routing-options router-id 120.0.30.2
  • Configure EBGP Session and Accept Default Route with LP=120 while rejecting all other prefixes
set policy-options prefix-list Default 0.0.0.0/0

set policy-options policy-statement Default term 10 from prefix-list Default

set policy-options policy-statement Default term 10 then local-preference 120

set policy-options policy-statement Default term 10 then accept

set policy-options policy-statement Default term 999 then reject


set protocols bgp group ISP-AS100 type external

set protocols bgp group ISP-AS100 import Default

set protocols bgp group ISP-AS100 authentication-key "$9$9UPDt0IylMNdsEcds24DjCtu"

set protocols bgp group ISP-AS100 peer-as 100

set protocols bgp group ISP-AS100 neighbor 120.0.4.9 description "ISP FastAccess: Circuit GD8AJ12B: ISP NOC 800-111-2222"



  • Advertise Network Prefix to ISP
set policy-options prefix-list LocallyOriginated 120.0.30.0/24

set policy-options policy-statement Direct-To-BGP term 10 from protocol direct

set policy-options policy-statement Direct-To-BGP term 10 from prefix-list LocallyOriginated

set policy-options policy-statement Direct-To-BGP term 10 then accept

set policy-options policy-statement Direct-To-BGP term 999 then reject



set protocols bgp group ISP-AS100 export Direct-To-BGP

EBGP Session between CE-2 to PE-2

  • Configure AS Number and Router ID
set routing-options autonomous-system 65001

set routing-options router-id 120.0.30.3
  • Configure EBGP Session and Accept Default Route with LP=100 while rejecting all other prefixes
set policy-options prefix-list Default 0.0.0.0/0

set policy-options policy-statement Default term 10 from prefix-list Default

set policy-options policy-statement Default term 10 then local-preference 100

set policy-options policy-statement Default term 10 then accept

set policy-options policy-statement Default term 999 then reject


set protocols bgp group ISP-AS100 type external

set protocols bgp group ISP-AS100 import Default

set protocols bgp group ISP-AS100 authentication-key "$9$9UPDt0IylMNdsEcds24DjCtu"

set protocols bgp group ISP-AS100 export Direct-To-BGP

set protocols bgp group ISP-AS100 peer-as 100

set protocols bgp group ISP-AS100 neighbor 120.0.4.13 description "ISP FastAccess: Circuit GD8AJ12C: ISP NOC 800-111-2222"
  • Advertise Network Prefix 0.30.0/24 to ISP with Prepend
 set policy-options prefix-list LocallyOriginated 120.0.30.0/24

set policy-options policy-statement Direct-To-BGP term 10 from protocol direct

set policy-options policy-statement Direct-To-BGP term 10 from prefix-list LocallyOriginated

set policy-options policy-statement Direct-To-BGP term 10 then as-path-prepend 2

set policy-options policy-statement Direct-To-BGP term 10 then accept

set policy-options policy-statement Direct-To-BGP term 999 then reject


set protocols bgp group ISP-AS100 export Direct-To-BGP

IBGP Session between CE devices

  • On CE-2, setup IBGP Session with CE-1
set policy-options policy-statement NextHopSelf term one then next-hop self


set protocols bgp group IBGP export NextHopSelf

set protocols bgp group IBGP type internal

set protocols bgp group IBGP local-address 120.0.30.2

set protocols bgp group IBGP authentication-key "$9$3Uey/A0EclLxdBIxdbsJZn/C"

set protocols bgp group IBGP export NextHopSelf

set protocols bgp group IBGP neighbor 120.0.30.3



You might have noticed that we are using internal interface IP as Router-ID and IBGP neighbor source. At a first glance, this might contradict a typical best practice recommendation of using router’s loopback address for this function. In our example, Loopback peering would not improve network stability, but introduce unnecessary complexity. Loopback peering is only required if you have multiple L3 paths interconnecting your CE devices. Those are not present in our example.

Please note, that we are using Next-Hop-Self on our IBGP session. Refer to ‘Next-Hop-Self Explained’ article if you are not familiar with the concept.



  • On CE-2, setup IBGP Session with CE-1
set policy-options policy-statement NextHopSelf term one then next-hop self

set protocols bgp group IBGP type internal

set protocols bgp group IBGP local-address 120.0.30.3

set protocols bgp group IBGP authentication-key "$9$tEpy01hevLVwgSrwgoJHkp0B"

set protocols bgp group IBGP export NextHopSelf

set protocols bgp group IBGP neighbor 120.0.30.2

CE-1 BGP Verification

  • Verify that the default route 0.0.0.0/0 is being received from the ISP
> show route receive-protocol bgp 120.0.4.9

inet.0: 9 destinations, 9 routes (9 active, 0 holddown, 0 hidden)

  Prefix               Nexthop            MED     Lclpref    AS path

* 0.0.0.0/0               120.0.4.9                               100 I
  • Verify that the default route got installed into the routing table
> show route 0.0.0.0

inet.0: 9 destinations, 9 routes (9 active, 0 holddown, 0 hidden)

+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[BGP/170] 4d 20:07:14, localpref 120

                      AS path: 100 I

                    > to 120.0.4.9 via ge-0/0/1.0



  • Verify that the default route is being re-advertised to CE2 via IBGP session with LP=120
> show route advertising-protocol bgp 120.0.30.3

inet.0: 9 destinations, 9 routes (9 active, 0 holddown, 0 hidden)

Prefix                Nexthop            MED     Lclpref    AS path

* 0.0.0.0/0               Self                         120        100 I



  • Verify that your network prefix (120.0.30/24) is being advertised to the ISP
> show route advertising-protocol bgp 120.0.4.9

inet.0: 9 destinations, 9 routes (9 active, 0 holddown, 0 hidden)

Prefix                Nexthop            MED     Lclpref    AS path

* 120.0.30.0/24           Self                                    I

CE-2 BGP Verification

  • Verify that the default route 0.0.0.0/0 is being received from the ISP
> show route receive-protocol bgp 120.0.4.13

inet.0: 7 destinations, 8 routes (7 active, 0 holddown, 0 hidden)

  Prefix                  Nexthop              MED     Lclpref    AS path

  0.0.0.0/0               120.0.4.13                              100 I



  • Verify that the default route is being received via IBGP from CE-1 with LP=120
> show route receive-protocol bgp 120.0.30.2

inet.0: 7 destinations, 8 routes (7 active, 0 holddown, 0 hidden)

  Prefix                  Nexthop              MED     Lclpref    AS path

* 0.0.0.0/0               120.0.30.2                   120        100 I



  • Verify that the default route got installed into the routing table. It should be pointing to CE-1
> show route 0.0.0.0

inet.0: 7 destinations, 8 routes (7 active, 0 holddown, 0 hidden)

+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[BGP/170] 4d 20:14:17, localpref 120

                      AS path: 100 I

                    > to 120.0.30.2 via ge-0/0/2.0

                    [BGP/170] 4d 21:23:36, localpref 100

                      AS path: 100 I

                    > to 120.0.4.13 via ge-0/0/1.0



  • Verify that your network prefix (120.0.30/24) is being advertised to the ISP with AS-Prepend
> show route advertising-protocol bgp 120.0.4.13

Prefix                  Nexthop              MED     Lclpref    AS path

* 120.0.30.0/24           Self                                    2 [65001] I

 VRRP Configuration and Verification

  • CE-1 with high priority
set interfaces ge-0/0/2 description "LAN Segment"

set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.2/24 vrrp-group 1 virtual-address 120.0.30.1

set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.2/24 vrrp-group 1 priority 120

set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.2/24 vrrp-group 1 preempt

set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.2/24 vrrp-group 1 accept-data
  • On CE-1, configure interface tracking to decrease VRRP priority in case of CE-1 to PE-1 link failure
set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.2/24 vrrp-group 1 track interface ge-0/0/1 priority-cost 50
  • CE-2 with low priority
set interfaces ge-0/0/2 description "LAN Segment"

set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.3/24 vrrp-group 1 virtual-address 120.0.30.1

set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.3/24 vrrp-group 1 priority 100

set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.3/24 vrrp-group 1 preempt

set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.3/24 vrrp-group 1 accept-data

·      Verify VRRP status on CE-1 and CE-2

> show vrrp brief

Interface     State       Group   VR state VR Mode   Timer    Type   Address

ge-0/0/2.0    up              1   master   Active      A  0.514 lcl    120.0.30.2

vip    120.0.30.1


> show vrrp brief

Interface     State       Group   VR state VR Mode   Timer    Type   Address

ge-0/0/2.0    up              1   backup   Active      D  3.582 lcl    120.0.30.3

vip    120.0.30.1

mas    120.0.30.2

CE1 Complete Configuration

set system host-name CE-1
set system domain-name bgphelp.com
set system time-zone America/New_York
set system no-redirects
set system root-authentication encrypted-password <REMOVED>
set system name-server 120.0.30.10
set system login user bgphelp uid 2000
set system login user bgphelp class super-user
set system login user bgphelp authentication encrypted-password <REMOVED>
set system services ssh protocol-version v2
set system services netconf ssh
set system syslog user * any emergency
set system syslog host 120.0.30.10 any info
set system syslog file messages any any
set system syslog file messages authorization info
set system syslog file interactive-commands interactive-commands any
set system ntp server 120.0.30.10
set interfaces ge-0/0/1 description "CE1->PE2"
set interfaces ge-0/0/1 unit 0 family inet filter input-list discard-martian
set interfaces ge-0/0/1 unit 0 family inet filter input-list discard-local
set interfaces ge-0/0/1 unit 0 family inet filter input-list accept-any
set interfaces ge-0/0/1 unit 0 family inet filter output-list accept-local
set interfaces ge-0/0/1 unit 0 family inet filter output-list discard-any
set interfaces ge-0/0/1 unit 0 family inet address 120.0.4.10/30
set interfaces ge-0/0/2 description "LAN Segment"
set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.2/24 vrrp-group 1 virtual-address 120.0.30.1
set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.2/24 vrrp-group 1 priority 120
set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.2/24 vrrp-group 1 preempt
set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.2/24 vrrp-group 1 accept-data
set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.2/24 vrrp-group 1 track interface ge-0/0/1 priority-cost 50
set interfaces lo0 unit 0 family inet filter input-list accept-protocols
set interfaces lo0 unit 0 family inet filter input-list accept-management
set interfaces lo0 unit 0 family inet filter input-list accept-monitoring
set interfaces lo0 unit 0 family inet filter input-list discard-any
set snmp location MarsDC:BAY12334:U123
set snmp contact "IP NOC 1-345-12-1234"
set snmp community f0ryoureyesonly clients 120.0.30.10/32
set snmp trap-group all version v2
set snmp trap-group all targets 120.0.30.10
set routing-options router-id 120.0.30.2
set routing-options autonomous-system 65001
set protocols bgp log-updown
set protocols bgp group ISP-AS100 type external
set protocols bgp group ISP-AS100 import Default
set protocols bgp group ISP-AS100 authentication-key "$9$9UPDt0IylMNdsEcds24DjCtu"
set protocols bgp group ISP-AS100 export Direct-To-BGP
set protocols bgp group ISP-AS100 peer-as 100
set protocols bgp group ISP-AS100 neighbor 120.0.4.9 description "ISP FastAccess: Circuit GD8AJ12B: ISP NOC 800-111-2222"
set protocols bgp group IBGP type internal
set protocols bgp group IBGP local-address 120.0.30.2
set protocols bgp group IBGP authentication-key "$9$3Uey/A0EclLxdBIxdbsJZn/C"
set protocols bgp group IBGP export NextHopSelf
set protocols bgp group IBGP neighbor 120.0.30.3
set policy-options prefix-list LocallyOriginated 120.0.30.0/24
set policy-options prefix-list Default 0.0.0.0/0
set policy-options policy-statement Default term 10 from prefix-list Default
set policy-options policy-statement Default term 10 then local-preference 120
set policy-options policy-statement Default term 10 then accept
set policy-options policy-statement Default term 999 then reject
set policy-options policy-statement Direct-To-BGP term 10 from protocol direct
set policy-options policy-statement Direct-To-BGP term 10 from prefix-list LocallyOriginated
set policy-options policy-statement Direct-To-BGP term 10 then accept
set policy-options policy-statement Direct-To-BGP term 999 then reject
set policy-options policy-statement NextHopSelf term one then next-hop self
set firewall family inet filter discard-martian term rfc919 from source-address 255.255.255.255/32
set firewall family inet filter discard-martian term rfc919 then discard
set firewall family inet filter discard-martian term rfc1122 from source-address 0.0.0.0/8
set firewall family inet filter discard-martian term rfc1122 from source-address 127.0.0.0/8
set firewall family inet filter discard-martian term rfc1122 from source-address 240.0.0.0/4
set firewall family inet filter discard-martian term rfc1122 then discard
set firewall family inet filter discard-martian term rfc1918 from source-address 10.0.0.0/8
set firewall family inet filter discard-martian term rfc1918 from source-address 172.16.0.0/12
set firewall family inet filter discard-martian term rfc1918 from source-address 192.168.0.0/16
set firewall family inet filter discard-martian term rfc1918 then discard
set firewall family inet filter discard-martian term rfc2544 from source-address 198.18.0.0/15
set firewall family inet filter discard-martian term rfc2544 then discard
set firewall family inet filter discard-martian term rfc3171 from source-address 224.0.0.0/4
set firewall family inet filter discard-martian term rfc3171 then discard
set firewall family inet filter discard-martian term rfc3927 from source-address 169.254.0.0/16
set firewall family inet filter discard-martian term rfc3927 then discard
set firewall family inet filter discard-martian term rfc5736 from source-address 192.0.0.0/24
set firewall family inet filter discard-martian term rfc5736 then discard
set firewall family inet filter discard-martian term rfc5737 from source-address 192.0.2.0/24
set firewall family inet filter discard-martian term rfc5737 from source-address 198.51.100.0/24
set firewall family inet filter discard-martian term rfc5737 from source-address 203.0.113.0/24
set firewall family inet filter discard-martian term rfc5737 then discard
set firewall family inet filter discard-martian term rfc6598 from source-address 100.64.0.0/10
set firewall family inet filter discard-martian term rfc6598 then discard
set firewall family inet filter discard-local term 10 from source-address 120.0.30.0/24
set firewall family inet filter discard-local term 10 then discard
set firewall family inet filter accept-any term 10 then accept
set firewall family inet filter accept-local term 10 from source-address 120.0.30.0/24
set firewall family inet filter accept-local term 10 then accept
set firewall family inet filter accept-local term 20 from source-address 120.0.4.10/32
set firewall family inet filter accept-local term 20 then accept
set firewall family inet filter discard-any term 10 then discard
set firewall family inet filter accept-protocols term bgp from source-address 120.0.4.9/32
set firewall family inet filter accept-protocols term bgp from source-address 120.0.30.3/32
set firewall family inet filter accept-protocols term bgp from protocol tcp
set firewall family inet filter accept-protocols term bgp from port bgp
set firewall family inet filter accept-protocols term bgp then accept
set firewall family inet filter accept-management term ssh from source-address 120.0.30.10/32
set firewall family inet filter accept-management term ssh from source-address 192.168.3.0/24
set firewall family inet filter accept-management term ssh from protocol tcp
set firewall family inet filter accept-management term ssh from port ssh
set firewall family inet filter accept-management term ssh then accept
set firewall family inet filter accept-management term snmp from source-address 120.0.30.10/32
set firewall family inet filter accept-management term snmp from protocol udp
set firewall family inet filter accept-management term snmp from destination-port snmp
set firewall family inet filter accept-management term snmp then accept
set firewall family inet filter accept-management term ntp from source-address 120.0.30.10/32
set firewall family inet filter accept-management term ntp from protocol udp
set firewall family inet filter accept-management term ntp from port ntp
set firewall family inet filter accept-management term ntp then accept
set firewall family inet filter accept-management term dns from source-address 120.0.30.10/32
set firewall family inet filter accept-management term dns from protocol udp
set firewall family inet filter accept-management term dns from protocol tcp
set firewall family inet filter accept-management term dns from source-port 53
set firewall family inet filter accept-management term dns then accept
set firewall family inet filter accept-management term netconf from source-address 120.0.30.10/32
set firewall family inet filter accept-management term netconf from source-address 192.168.3.0/24
set firewall family inet filter accept-management term netconf from protocol tcp
set firewall family inet filter accept-management term netconf from destination-port 830
set firewall family inet filter accept-management term netconf then accept
set firewall family inet filter accept-monitoring term icmp from protocol icmp
set firewall family inet filter accept-monitoring term icmp from icmp-type echo-reply
set firewall family inet filter accept-monitoring term icmp from icmp-type echo-request
set firewall family inet filter accept-monitoring term icmp from icmp-type time-exceeded
set firewall family inet filter accept-monitoring term icmp from icmp-type unreachable
set firewall family inet filter accept-monitoring term icmp from icmp-type source-quench
set firewall family inet filter accept-monitoring term icmp from icmp-type router-advertisement
set firewall family inet filter accept-monitoring term icmp from icmp-type parameter-problem
set firewall family inet filter accept-monitoring term icmp then accept
set firewall family inet filter accept-monitoring term traceroute-udp from protocol udp
set firewall family inet filter accept-monitoring term traceroute-udp from destination-port 33435-33450
set firewall family inet filter accept-monitoring term traceroute-udp then accept

CE2 Complete Configuration

Repetitive elements removed

set system host-name CE-2
set system root-authentication encrypted-password <REMOVED>
set system services ssh
set system services netconf ssh
set interfaces ge-0/0/1 description "'CE4->PE2'"
set interfaces ge-0/0/1 unit 0 family inet address 120.0.4.14/30
set interfaces ge-0/0/2 description "LAN Segment"
set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.3/24 vrrp-group 1 virtual-address 120.0.30.1
set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.3/24 vrrp-group 1 priority 100
set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.3/24 vrrp-group 1 preempt
set interfaces ge-0/0/2 unit 0 family inet address 120.0.30.3/24 vrrp-group 1 accept-data
set routing-options router-id 120.0.30.3
set routing-options autonomous-system 65001
set routing-options resolution
set protocols bgp group ISP-AS100 type external
set protocols bgp group ISP-AS100 import Default
set protocols bgp group ISP-AS100 authentication-key "$9$9UPDt0IylMNdsEcds24DjCtu"
set protocols bgp group ISP-AS100 export Direct-To-BGP
set protocols bgp group ISP-AS100 peer-as 100
set protocols bgp group ISP-AS100 neighbor 120.0.4.13 description "ISP FastAccess: Circuit GD8AJ12C: ISP NOC 800-111-2222"
set protocols bgp group IBGP type internal
set protocols bgp group IBGP local-address 120.0.30.3
set protocols bgp group IBGP authentication-key "$9$tEpy01hevLVwgSrwgoJHkp0B"
set protocols bgp group IBGP export NextHopSelf
set protocols bgp group IBGP neighbor 120.0.30.2
set policy-options prefix-list LocallyOriginated 120.0.30.0/24
set policy-options prefix-list Default 0.0.0.0/0
set policy-options policy-statement Default term 10 from prefix-list Default
set policy-options policy-statement Default term 10 then local-preference 100
set policy-options policy-statement Default term 10 then accept
set policy-options policy-statement Default term 999 then reject
set policy-options policy-statement Direct-To-BGP term 10 from protocol direct
set policy-options policy-statement Direct-To-BGP term 10 from prefix-list LocallyOriginated
set policy-options policy-statement Direct-To-BGP term 10 then as-path-prepend 2
set policy-options policy-statement Direct-To-BGP term 10 then accept
set policy-options policy-statement Direct-To-BGP term 999 then reject
set policy-options policy-statement NextHopSelf term one then next-hop self



Leave a Reply

Your email address will not be published. Required fields are marked *
